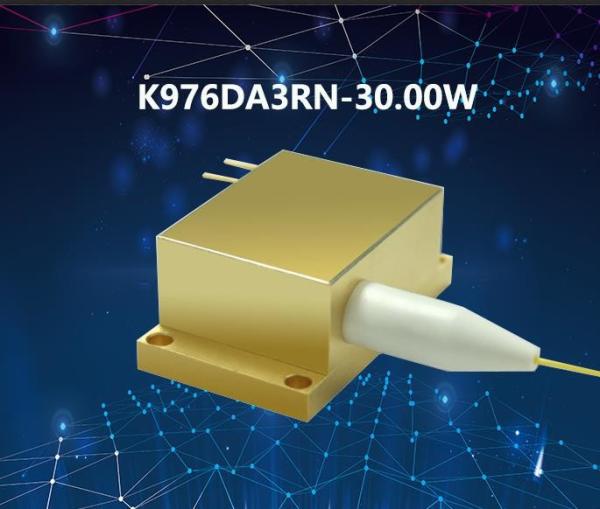

Pump High Power Diode Laser Module 976nm 0.22N.A. 30W

Product Categories

BWT Beijing Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Place of Origin : China

Brand Name : BWT

Certification : ISO9001

Model Number : K976DA3RN-30.00W

MOQ : 1 Piece/Pieces

Delivery Time : 4-8weeks

Payment Terms : T/T

Supply Ability : 100,000/year

Product Name : high power laser module

Output Power : 30W

Wavelength : 976nm

Fiber bundle diameter : 105µm

Numerical aperture : 0.22N.A

Application : Laser pumping ,Medical use, Material processing

Contact Now

Features:

976nm wavelength

30W output power

105µm fiber core diameter

0.22N.A.

Applications:

Laser pumping

Medical Use

Material Processing

Specifications(25℃)		Symbol	Unit	K976DA3RN-30.00W
Specifications(25℃)		Symbol	Unit	Minimum	Typical	Maximum
Optical Data	CW-Output Power	Po	W	30	-	-
	Center Wavelength	λc	nm	976±3
	Spectral Width (FWHM)	△λ	nm	6
	Wavelength Shift with Temperature	△λ/△T	nm/℃	-	0.3	-
	Wavelength Shift with Current	△λ/△A	nm/A	-	1	-
Electrical Data	Electrical-to-Optical Efficiency	PE	%		48	-
	Threshold current	lth	A	-	0.9	-
	Operating current	lop	A	-	12	13
	Operating voltage	Vop	V	-	4.8	6
	Slope Efficiency	η	W/A	-	2.7	-
Fiber Data	Core diameter	Dcore	μm	-	105	-
	Cladding diameter	Dclad	μm	-	125	-
	Buffer diameter	Dbuf	μm	-	245	-
	Numeric aperture	NA	-	-	0.22	-
	Fiber length	Lf	m	-	1	-
	Fiber Loose Tubing Diameter	-	μm	0.9mm PVC 1.5cm
	Minimum Bending Radius	-	mm	50	-	-
	Fiber termination	-	-	-	None	-
Feedback Isolation	Back reflection wavelength	λ	nm	1040-1200
Feedback Isolation	Back reflection isolation	-	dB	-	30	-
Others	ESD	Vesd	V	-	-	500
	Storage temperature	Tst	℃	-20	-	70
	Lead Soldering Temp	Tls	℃	-	-	260
	Lead Soldering Time	t	sec	-	-	10
	Operating case temperature	Top	℃	15	-	35
	Relative Humidity	RH	%	15	-	75
